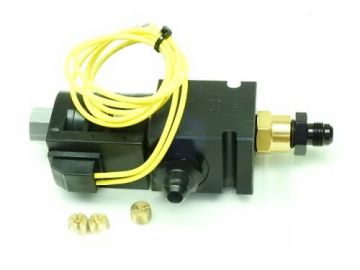

    Electric Lean out Valve - 6AN Inlet &  Outlet Normally Closed  Activated Manually or Electrically

    Thumbnail Filmstrip of Electric Lean out Valve - 6AN Inlet & Outlet Normally Closed Activated Manually or Electrically Images

      Purchase Electric Lean out Valve - 6AN Inlet & Outlet Normally Closed Activated Manually or Electrically

      SKU: ELO-Valve
      Electric Lean out Valve -Starting Line Lean Out 6AN Inlet & Outlet Normally Closed Activated Manually or Electrically

      $310.00






      Electric Lean Out -    Normally Closed            "Starting Line Helper "

      CAN BE USED ON TRANSMISSIONS TO ENHANCE THE STALL SPEED

      We've searched high and low and tried many different solenoid valves for fuel injection lean-out duties. This fantastic valve isn't just a re-purposed nitrous solenoid. Nitrous valves pull too much current, have tiny little 1/8" NPT ports, and don't flow nearly enough. Other similar industrial valves can't function reliably under high enough pressure to be useful or have seals/seats that are incompatible with methanol or nitromethane.

      This 12VDC valve boasts 3500 PSI operating pressure, flows 7 GPM of methanol @ 100 PSI (no pill), -8 female ports and draws less than 1.7A. It is simply the BEST we've ever seen for this kind of duty. Rated for CONSTANT DUTY, this valve can be kept open continuously without fear of overheating.

      Perfect as a high-speed lean out, stage valve, or "converter helper", this fantastic valve can do it all! Also available in a normally open version for enrichment purposes.

      If you use an MSD PowerGrid, you could use a relay to activate the valve using the grid's "OUTPUT SWITCH" timer. Or, you could use an RPM activated switch to activate.

      The lightweight aluminum valve body is hard anodized for long life. The assembly includes a brass pill plug, button head plugs in one of the IN and OUT ports, and -6 male fittings for attaching your hoses. This body accepts standard Enderle screw-in bypass pills (not supplied).

      The coil can be rotated to position the non-polarity sensitive leads in any direction desired. The thru holes in the valve body allow bolting the valve to the vehicle with 1/4" socket head cap screws (not supplied).

      This valve is considered "pilot operated" which means it requires some pressure (typically 8 to 10 PSI) in order for it to open. When you test this valve on the bench, be sure to put pressure on the "IN" port with an air hose or similar.

      An IN and OUT in each side means easier plumbing...use the port that works for you. The plugged, unused ports can serve as an extra pressure or return port for other purposes.

      As a high-speed lean out, this valve can be activated with an RPM activated switch or timer when needed to take fuel away at the top end for best horsepower.

      What's a "Converter helper"? When a fuel injected motor is on a rev limiter, the motor cools down severely since a large quantity of fuel is not being burned. This valve can be wired to the transbrake circuit so that when the transbrake is set, the valve opens and keeps the motor hot, lean and mean while on the rev limiter. When the transbrake is released, the valve closes and the system goes back to full rich for the launch. Amazing improvements in 60' times can result on supercharged or naturally aspirated applications. Typically, removing 2 to 3% of the normal fuel required by the motor is a good place to start, removing up to 5% in some cases.

      Solenoid valves are also used on clutch cars triggered by a clutch switch and are referred to as a "stage valve". When revving the motor prior to launch (while the car is staged), the valve keeps the motor from loading-up while under no load and at partial throttle where the AFR is difficult to tune.
