SKU: AD-FUELBLOCK-6

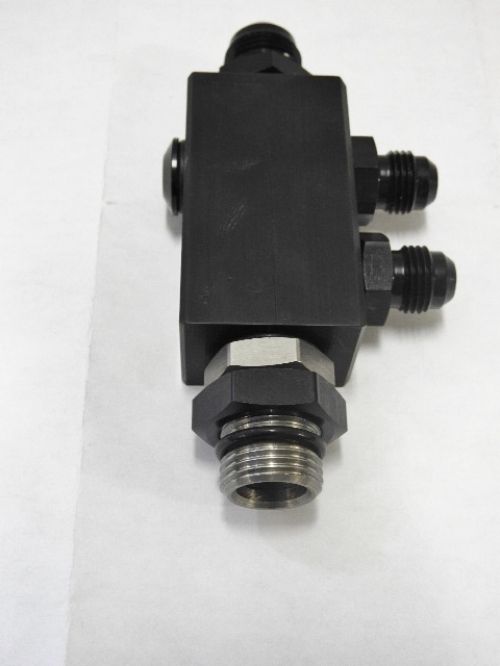

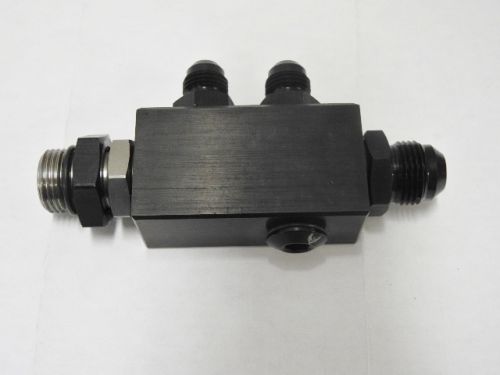

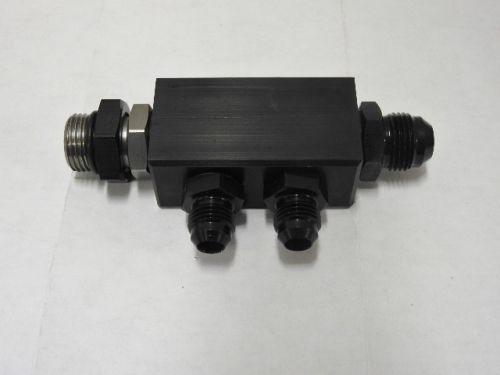

-6 FUEL BLOCK W FITTINGS FUEL DISTRIBUTION BLOCK

Fuel Return Block  - Distribution Block    With  Fittings

MADE TO GO INTO THE RETURN ON A -6 SHUT OFF VALVE

-6 BULKHEAD WHERE GOES INTO SHUT OFF VALVE

(2) 8AN ports female - 1 on Each End

(3) 6AN  female ports   OR 2  WITH  ONE PLUG   OPTION

Great junction block, check valve block

A bulkhead fitting in one end to interface with a fuel shut-off or pump opens up all kinds of possibilities.

Run the idle check valve and high-speed bypass from the hat into the top, and the combined

Return out the end with a hose or out the bottom using hard-line back to the inlet.

Install on the return port of the shut off valve and have 4 returns if needed

But if you like, the pump saver can easily be run into the end port using a 90 degree hose fitting and the fuel returned out the bottom.

Return block  ,  Fuel Return  , Return  , Fuel Block
