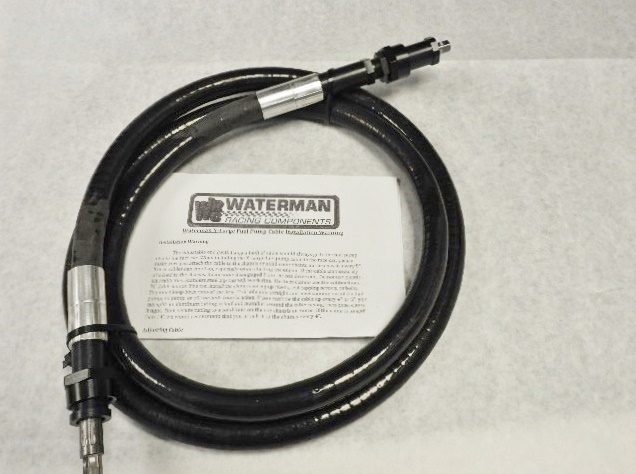

    49141 Fuel Pump Cable Drive, MED 5/16" CORE , Adjustable, Length up to 14 ft .
    49141- WATERMAN MED 5/16" CORE CABLE FUEL PUMP DRIVE , ADJ. 1" LENGTH UP TO 14 FT

    Thumbnail Filmstrip of 49141- WATERMAN MED 5/16" CORE CABLE FUEL PUMP DRIVE , ADJ. 1" LENGTH UP TO 14 FT Images

    • 49141- WATERMAN MED 5/16" CORE CABLE FUEL PUMP DRIVE , ADJ. 1" LENGTH UP TO 14 FT
    • 49141- WATERMAN MED 5/16" CORE CABLE FUEL PUMP DRIVE , ADJ. 1" LENGTH UP TO 14 FT
    • 49141- WATERMAN MED 5/16" CORE CABLE FUEL PUMP DRIVE , ADJ. 1" LENGTH UP TO 14 FT
    • 49141- WATERMAN MED 5/16" CORE CABLE FUEL PUMP DRIVE , ADJ. 1" LENGTH UP TO 14 FT
    • 49141- WATERMAN MED 5/16" CORE CABLE FUEL PUMP DRIVE , ADJ. 1" LENGTH UP TO 14 FT
    Purchase 49141- WATERMAN MED 5/16" CORE CABLE FUEL PUMP DRIVE , ADJ. 1" LENGTH UP TO 14 FT

    SKU: WAT-49141
    49141- WATERMAN MED 5/16" CORE CABLE FUEL PUMP DRIVE , ADJ. 1" LENGTH UP TO 14 FT PUMPS UNDER 9 GPM

    $275.00







    UNTIL APRIL 2025 THESE WILL BE APPROX 10-14 DAYS TO ORDER
    49141   The MED SIZE 5/16" CORE    Waterman Racing Fuel Pump Drive Cables
     Slightly Adjustable   FOR PUMPS UNDER 9 GPM

    CHOOSE FROM 1 FT TO 14 FT USING THE OPTION ON THE RIGHT
    6" increment cables  for 11'    12'     13'   only  - NON RETURNABLE - Measure Carefully
    CABLES IN 6" INCREMENTS  ARE NOT RETURNABLE

    MED  5/16"    THIS IS THE MED  DUTY CABLE  WITH   5/16 " DIA  AND  3/8" Hex Ends  OD  is .600"

            THE   MED 5/16" CORE 49141  CABLE IS OK FOR PUMPS UNDER 9 GPM  -BUT YOU CAN ALWAYS                                       USE THE XL WHICH IS 49161

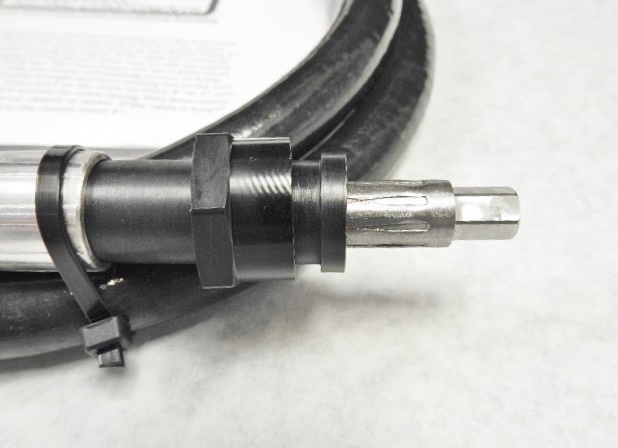

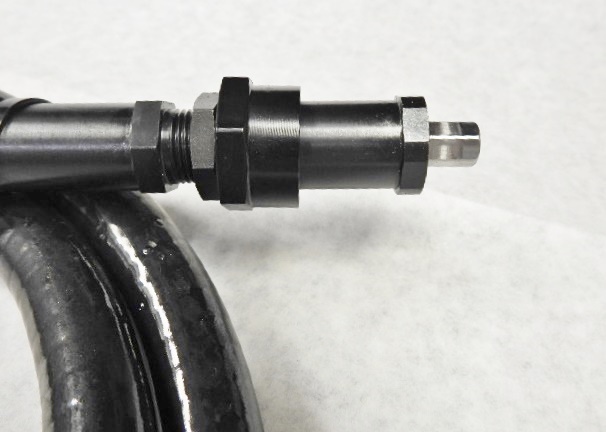

    Ends will be 3/8" Hex Male and 3/8" Hex Female  unless you want to special order a cable with 7/16"  Ends

    Will Drive  pumps From 3 gpm    up to 9 GPM
     Waterman Fuel Pump Drive   Cable Drive,MED  5/16" , Slightly Adjustable  .
    UP TO 6FT THE PRICE IS THE SAME THEN INCREASES FOR EACH ADDITIONAL  FT.
    For Pumps NON Waterman you will need this kit  :   WAT-49411-Cable-kit

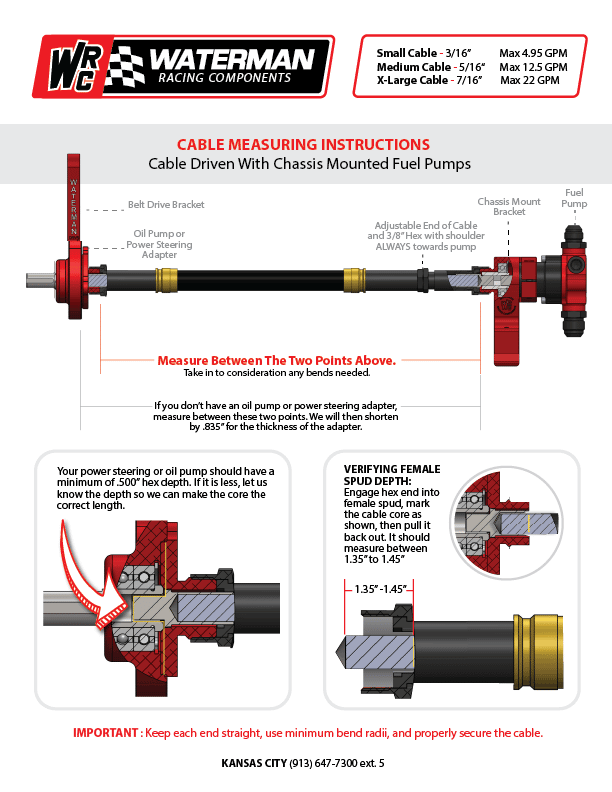

    Installation requires that you use an
    ADEL  Clamp  every 1 ft  OR RUN CABLE THROUGH PVC TUBING  AND BRACE IT WELL
    THE TRICK IS TO AVOID ANY  'WHIPPING"  IF POSSIBLE
    The longer the cable, the more support it should have.

    Cables have a manufacturing defect warranty for 90 days -
    No Warranty  if you fail to support them as described above.    See Below
