    TBS-2056 14-71 RACE BB MoPar WEDGE Competition Package All Billet, Manifold, Drive, Belt,

    $12,300.00

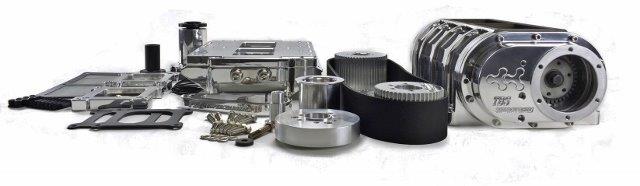

    Black Anodize Complete package:






    Blower Shop 2056.100   14-71 Complete BB MoPar  Special package

    1500-2200     HP

    Includes:

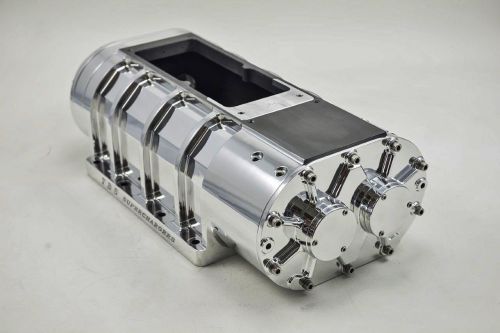

    2056.100 Billet  14-71 Stripped for   Alcohol- nitro

       120 degree High- Helix , Delta V Discharge Front

    Rear Cooling holes tapped for injection nozzles

    18 point Rotor stripping

      w Sight glass and pressure relief valve  ,

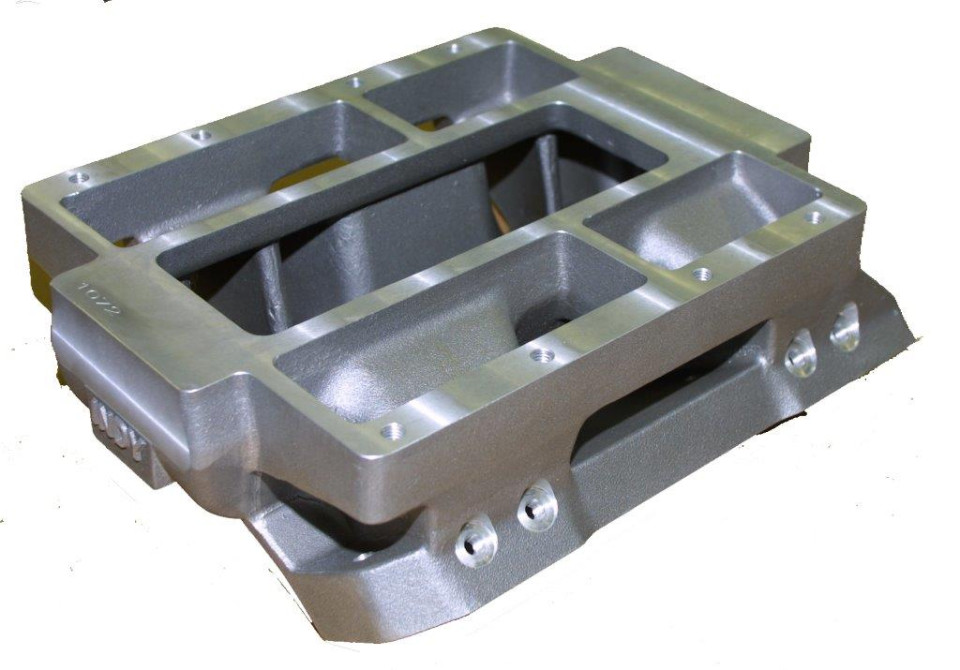

     Blower Shop Rec port Competition  intake manifold w Burst Panel  +

    Gaskets -Studs kit

    #100 Alcohol only rotors

    -Carbon 8mm Belt w RCD GT Pulleys

    Ultra Duty Idler

    8mm Polished Drive system - any ratio we decide on  from 10% under to 45% over  ( custom for your engine ) *

    This blower can be overdriven 55%

    Blower Shop  Snout assembly

    Ultra dutyIdler Bracket- Water pump mount style.

    Includes Competition Manifold  for port nozzles

    You can use our Innovator West Balancer with double Keyways if you prefer a Balancer.



    Ready to Install

    Should  make 40 lbs boost on a 440  cu in at  35% overdrive   *  Not a guarantee, depends on engine variables and altitude  ( elevation )

    Cooler charge with High Helix rotors - can run it faster, and make boost all the way up to 10,000 blower RPM

    Next level up blower is the   2057   then  2157 XR-1



    We stock Innovators West Harmonic Balancers and RCD Blower Hubs

    You can choose to run without a balancer since the blower belt absorbs the harmonic vibrations.

    Some engine Builders however  insist on a Balancer, so we like to do what they want.

    Balancers begin at $495 and go up depending on keyway, and if you need crank trigger  magnets.

     Hubs are around $240 and up - they are all double keyway.
