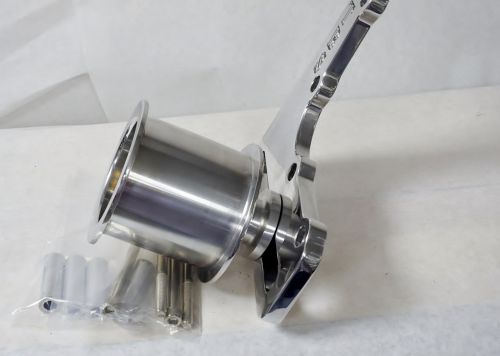

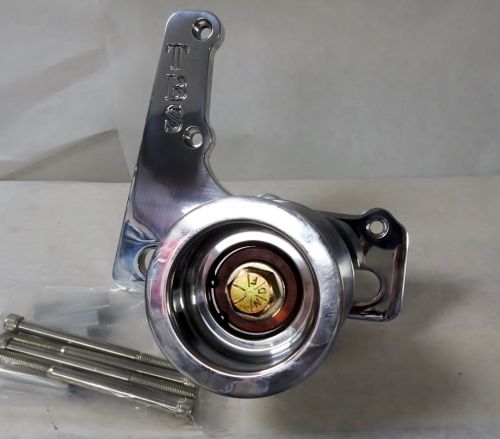

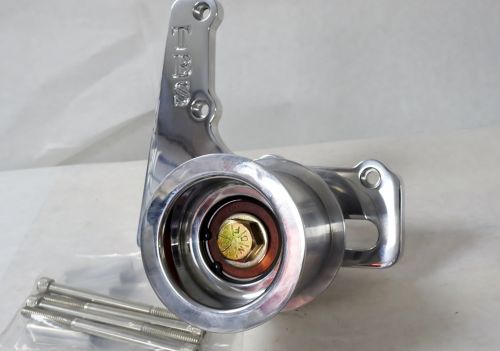

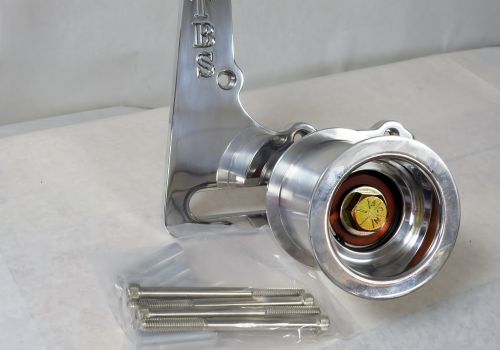

    TBS-4120-4100 Idler - Idler Pulley, Stand Bracket Assembly Polished w Black Option

    Thumbnail Filmstrip of TBS-4120-4100 Idler - Idler Pulley, Stand Bracket Assembly Polished w Black Option Images

    • TBS-4120-4100 Idler - Idler Pulley, Stand Bracket Assembly Polished w Black Option
    • TBS-4120-4100 Idler - Idler Pulley, Stand Bracket Assembly Polished w Black Option
    • TBS-4120-4100 Idler - Idler Pulley, Stand Bracket Assembly Polished w Black Option
    • TBS-4120-4100 Idler - Idler Pulley, Stand Bracket Assembly Polished w Black Option
    • TBS-4120-4100 Idler - Idler Pulley, Stand Bracket Assembly Polished w Black Option
    Purchase TBS-4120-4100 Idler - Idler Pulley, Stand Bracket Assembly Polished w Black Option

    SKU: TBS-4120-4100
    TBS-4120-4100 Idler - Idler Pulley, Stand Bracket Assembly Polished w Black Option

    $319.00

    Stand Lengths for Bracket to Blower:




      TBS Idler Bracket, Pulley & Stand   Assembly with Hardware

    • Machined Billet Aluminum  Polished w Black Option
    • Blower Mounted
    • 3" Wide  Billet  Pulley
    • Polished Bracket and Stands w bolts

    Ready to mount on you Blower

    Includes your choice of spacers and hardware for the idler bracket to blower plate:

    1 3/4"   Spacers
    1 7/8"  Spacers
    2 7/8" Spacers

    AND Your choice of Idler Pulley Stand

    1.55"
    1-3/4"
    2-3/4"


       THE TBS-4120 IDLER KIT - BLOWER MOUNTER  IS TOUGH TO FIGURE OUT  -  DEPENDS ON WHAT BRAND BLOWER - HOW MUCH SPACING YOU ARE USING ON BOTTOM AND TOP SNOUT LENGTH   BEST WAY IS TO PUT A  STRAIGHT EDGE ON THE LOWER PULLEY AND MEASURE WHERE THE IDLER NEEDS TO COME OUT TO   ALIGN W THE TOP PULLEY

    TYPICALLY THE SB CHEVY USES A 1.55" STAND THE BB CHEV USES THE 1-3/4"    A MO PAR AND FORD USE THE  LONGEST ONE  AS WELL AS THE LONGEST STANDS ( SPACERS)
