SKU: TBS-3110
TBS-3110 Blower Shop Chevy 192 "Serpentine" SB Blower Package - 16 Rib ( Special Order , please see our 3115 ) with 2V Accessory 192 Blower Complete with Manifold and Drive SB Chevy 23 Degree

SB Chevy- 192  Blower Setup Special Order   - SB Chevy w Serpentine pulley setup

Not recommended for RACING     use  TBS-3115

 (   8 to 12  week delivery usually )

( See Part # 3115  for 8mm cogged belt design )

Non returnable  -  High Helix Option

Used for underhood clearance   also used on   Bracket cars to keep ET consistant in changing weather .

For Street the 3110 is fine  for bracket racing, you will want the 3115  8mm style

Race or Street   -  commonly used on Alcohol  high compression Bracket Cars to enhance the atmospheric  changes .

Works with gas, E-85 or Methanol

For use with short water pump-

Will make up to 11 lbs boost on a 383   about 10 lbs on a 400    12 lbs on a 350

this setup has a 2V Accessory drive      see  part #  #3111  for serpentine accessory drive

A 71 style Supercharger sticking out of the hood is always a nice addition, but it may not be what you are looking for. With our 192/250 BilletCharger blower series we have solved that problem. Still producing the most boost in the industry these dangerously powerful blowers come in a beautifully small package.  Perfect for tight clearances and low profile under-the-hood applications.

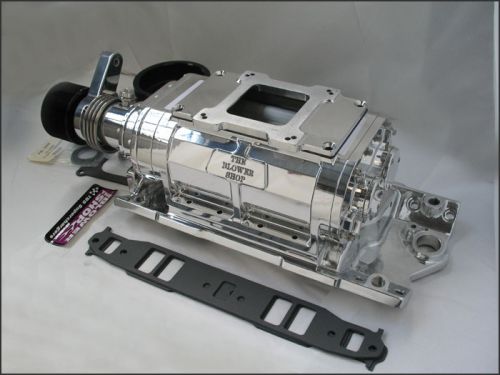

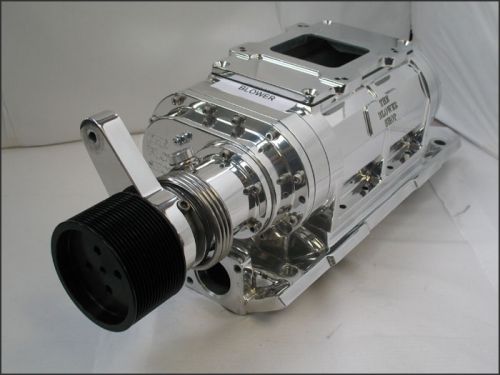

Complete Kit for Small Block Chevy

2 Lobe Straight Rotors w/ Teflon  ( w 3 Lobe HH Option )

Specs:

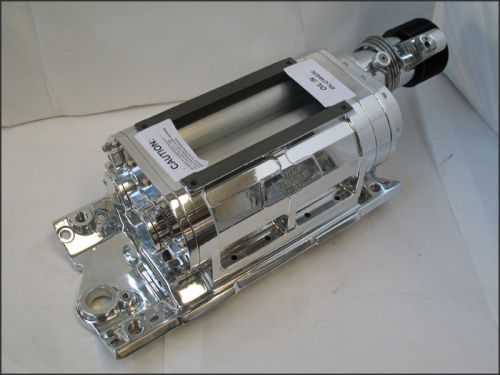

• Billet Case
  • CNC machined 6061-T6 Aluminum
  • Increased Strength over cast
  • Hard Anodized Interior
  • Mirror-Like Polish
  • Low Profile Design (6.56” tall including Billet Carb Adaptor)
  • Single Carb (4150 or 4500 *Please Specify when Ordering)
• 2 Lobe Rotors
  • Billet Extrusion
  • Teflon OD Stripping
  • Full length rotor shaft for increased strength
  • Maximum boost at low RPM
• Billet Front Cover
  • Oil Level Sight Glass
  • Oil Drain Plug
  • Polished Pressure Relief Valve
• Billet Bearing Plates
  • Increased Strength over cast
  • Hard Anodized

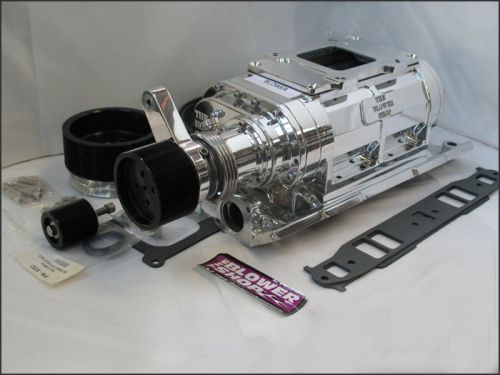

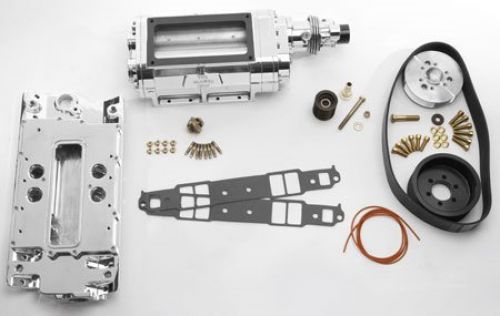

• Included:
  • 192 Billet Supercharger with Snout
  •
  • Accessory Pulley  2V
  • Supercharger Pulleys (*Please specify engine size and desired boost when ordering)
  • Belt (16 Rib Serpentine style)
  • Idler Assembly (Spring Tensioner, Pulley)
  • All Necessary Gaskets and Hardware

We stock Innovators West Harmonic Balancers and RCD Blower Hubs

You can choose to run without a balancer since the blower belt absorbs the harmonic vibrations. Some engine Builders however  insist on a Balancer, so we like to do what they want.  Balancers begin at $515 and go up depending on keyway, and if you need crank trigger  magnets. Hubs are around $220and up - they are all double keyway.
