TBS- 2056-100 SUPER BLOWER SETUP

Thumbnail Filmstrip of TBS-2056 14-71 RACE BB -SB Chevy 14-71 & Fuel Package Enderle Birdcatcher 1004 High Boost Images

Purchase TBS-2056 14-71 RACE BB -SB Chevy 14-71 & Fuel Package Enderle Birdcatcher 1004 High Boost

SKU: TBS-2056-RACE
BB Chevy Competition Blower Pkg. 2056 14-71 Hi-Helix 18 point Stripping, cooling nozzle holes, Alky-E-85 Rotors , front Discharge w V opening Complete ., 8mm

Name: TBS-2056 14-71 RACE BB -SB Chevy 14-71 & Fuel Package Enderle Birdcatcher 1004 High Boost
Brand: Alkydigger Fuel Injection-Superchargers-Ignitions
SKU: TBS-2056-RACE-Setup
Price: 17600 USD
Availability: InStock

$17,600.00

Add Blower restraint kit +$495.00

Install Billet K Valve Instead of Square valve +$350.00

Add RCD Crankshaft support +$1250.00

BLACK Blower-Pulleys-Birdcatcher-Manifold- whole thing incl Injector +$1300.00

11 MM pulley & Belt Option upgrade +$225.00

No Gear Drive included -$1200.00

Upgrade to a BAU 5" or 5-9/16" +$975.00

Big Chief and Big Duke Heads Manifold Upgrade SATIN +$900.00

Ballistic Bag with Restraints SFI 14-1 +$899.00

Qty

Description

Blower Shop 14-71 2056 w 100 or 200 Rotors 18 point Teflon w Delta Outlet

With High Boost 1004 Birdcatcher Setup Alcohol or E-85 only **

Enderle Injection- Waterman Lil Bertha Pump- Cam or Belt Drive -Shut Off Valve- Fuel Filter -Port Nozzles

Waterman LIL Bertha 14-19 gpm fuel pump **

High Speed Lean out valve

Shut off valve with cable kit

Complete Big Block or SB Chevy Special

Includes:

2056-100 Billet 14-71 18 point Stripped for E-85 or Alcohol- nitro

120 degree High- Helix , Front discharge. w V Opening only

Rear Cooling holes tapped for injection nozzles

100 Rotors 18 point Rotor stripping- w Sight glass and pressure relief valve ,

Competition intake manifold w Burst Panel +

Gaskets -Studs kit-1V accessory pulley

Carbon 8mm Belt - GT 8mm RCD Pulleys Gates or Star Racer w 11mm option

Port nozzle kit - with 8 injectors for the manifold

RCD Gear Drive- or Milodon Gear Drive your option Std Height Cam - Raised costs $175 more

Enderle Birdcatcher with Upgrade to BAU 5" or 5-9/16"

Port Nozzles for manifold

Waterman Fuel pump 14 gpm to 17 gpm

Shut off Valve & Cable Kit

8mm GT Drive system - any ratio we decide on from 10% under to 45% over ( custom for your engine ) *

RCD Blower Hub and degree Ring

RCD outboard Competition Idler Assembly

Includes Competition Manifold for port nozzles * option for royal Ram merisch manifold $1050 +

Includes a RCD Blower Hub with Degree Ring optional 4 magnet wheel for crank Trigger

Ready to Install

Should make 35+ lbs boost on a 540 cu in at 30% overdrive * Not a guarantee, depends on engine variables and altitude ( elevation )

Cooler charge with High Helix rotors - can run it faster, and make boost all the way up to 10,000 blower RPM

Next level up blower is the 2057 then 2157 XR-1

-------------We stock Innovators West Harmonic Balancers and RCD Blower Hubs------------

Related Products

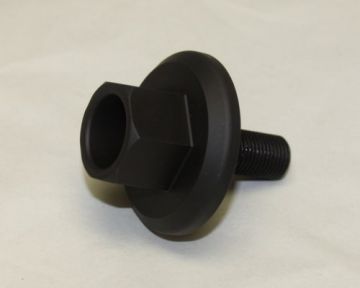

**358850-38 RCD BB Crank Blower Hub Bolt - Chevy 1/2-20 x 1.25", 1.95" Flange Crank Bolt** $67.50
