Thumbnail Filmstrip of Offset Distributor Drive Counter Clockwise - RCD Images
Billet Aluminum- Holds full length Chevy Magneto or Distributor CCW rotation
Takes 4" from timing cover to end of flange where fuel pump mounts + Fuel Pump Length
Up front and out of the way!
Completely move the distributor from the back of the block to the front.

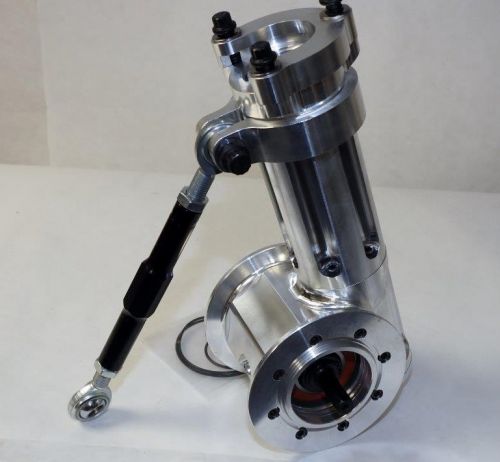

RCD's fuel pump magneto drive. This drive will accept any Chevy V8 Distributor or Magneto, and clamps to any fuel pump extension with a Quick Clamp and 3/8 hex drive.
Recommend running a bronze gear.
This drive allows you to move the Distributor/Magneto out in front of the blower drive, thus not extending the drive to compensate for the distributor being behind the belt.
Ease of access is a definite plus as well!
3" Front to back- Installation kit adds another 1/2"
Machined from solid billet - no castings!
Drive and magneto can be clocked anywhere within 360 degrees.
O-ring seals - Oil feed port
3-bolt Magneto clamp
Adjustable mounting brace (optional)
