Thumbnail Filmstrip of 202403-04 RCD- BB Chevy LH Crank trigger kit with Wheel -Brackets-Bolt- Pickup LH Images

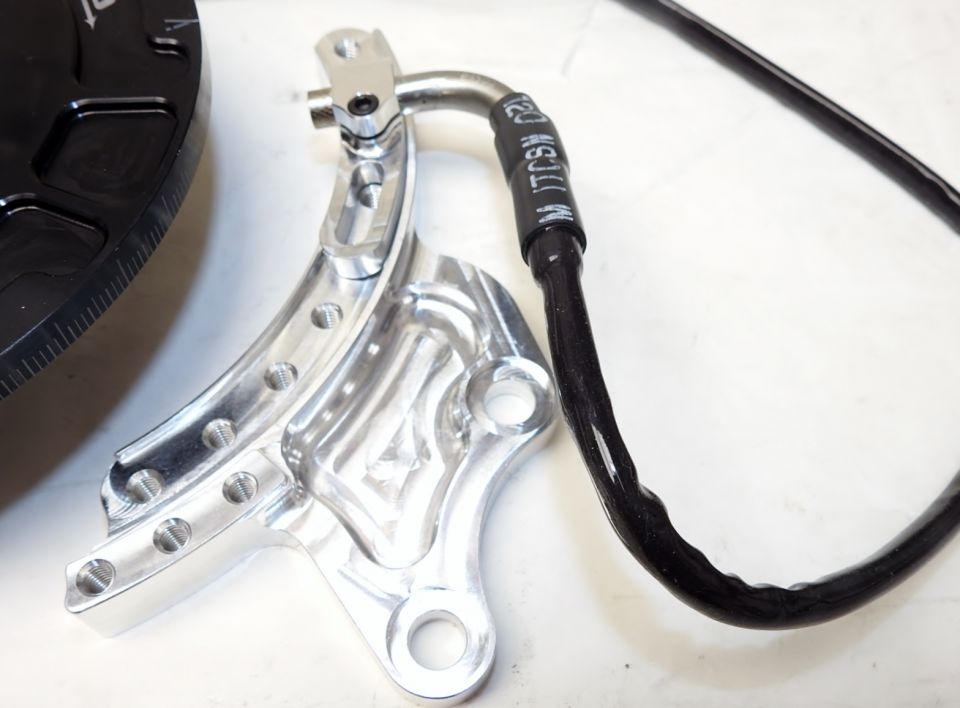

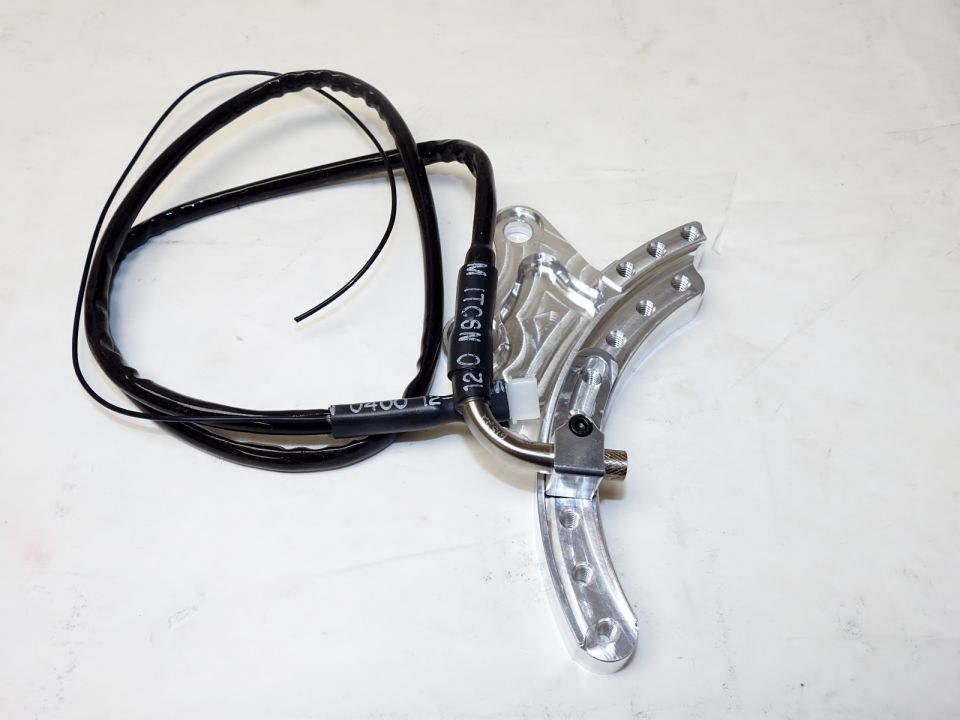

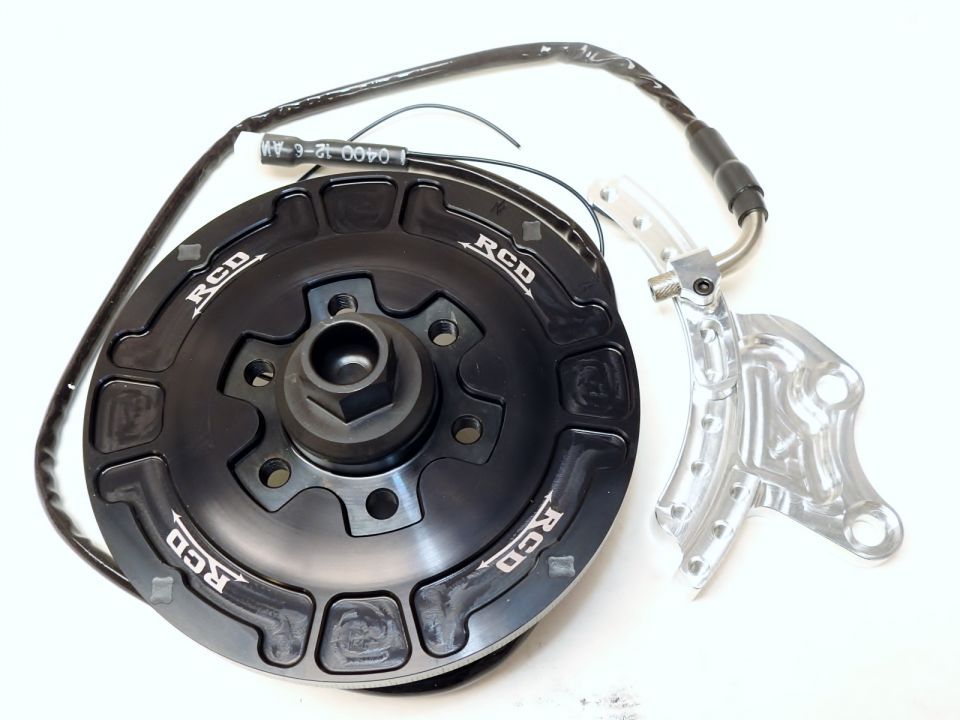

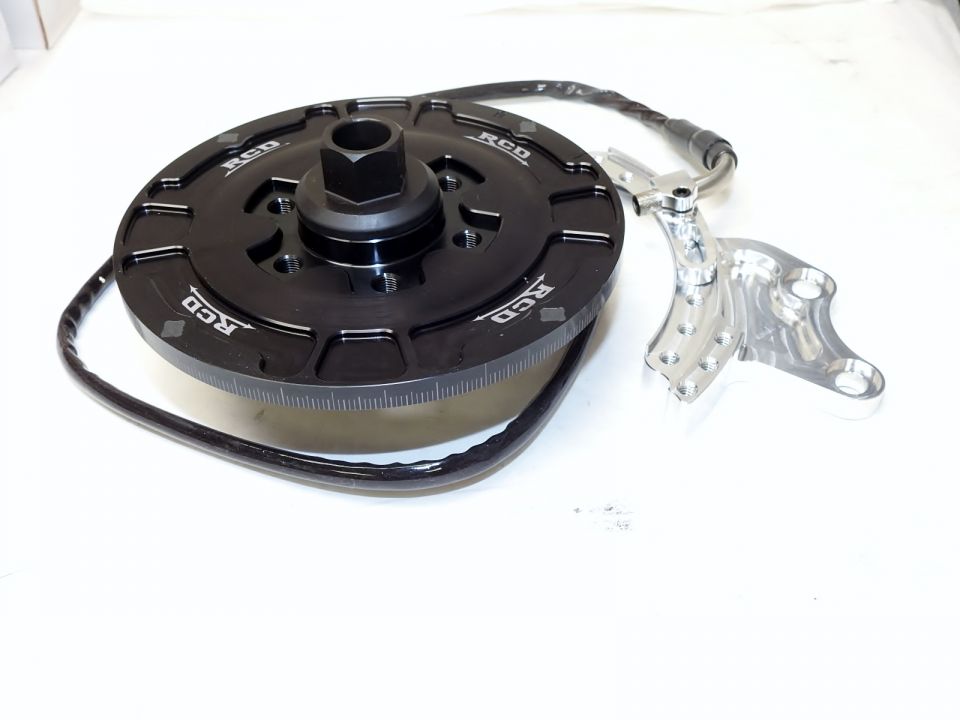

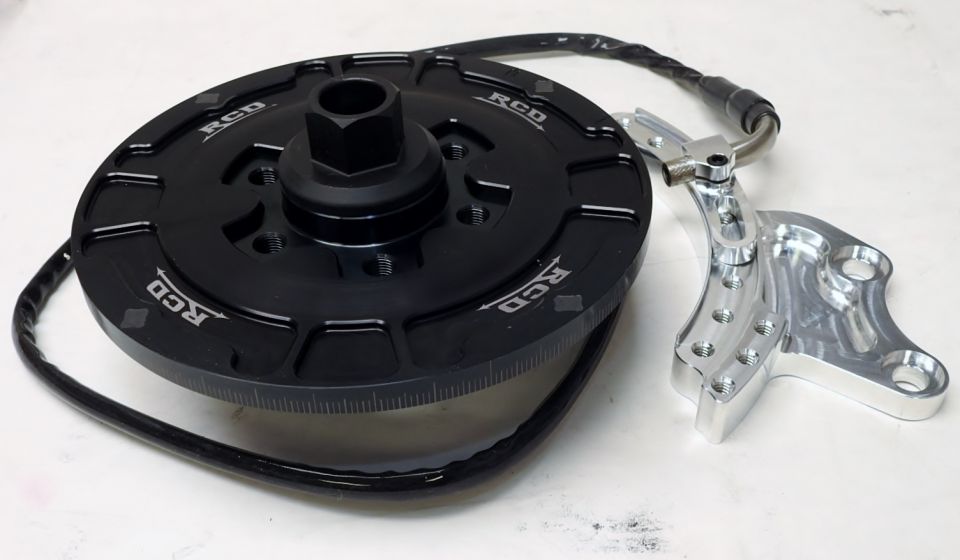

RCD Crank Trigger BB Chevy LEFT Hand Drivers Side with 4 magnet wheel-Hub-Bolt-Brackets- 90 degree Leahy pickup plugs into MSD
Will fit Gear Drives and Timing covers

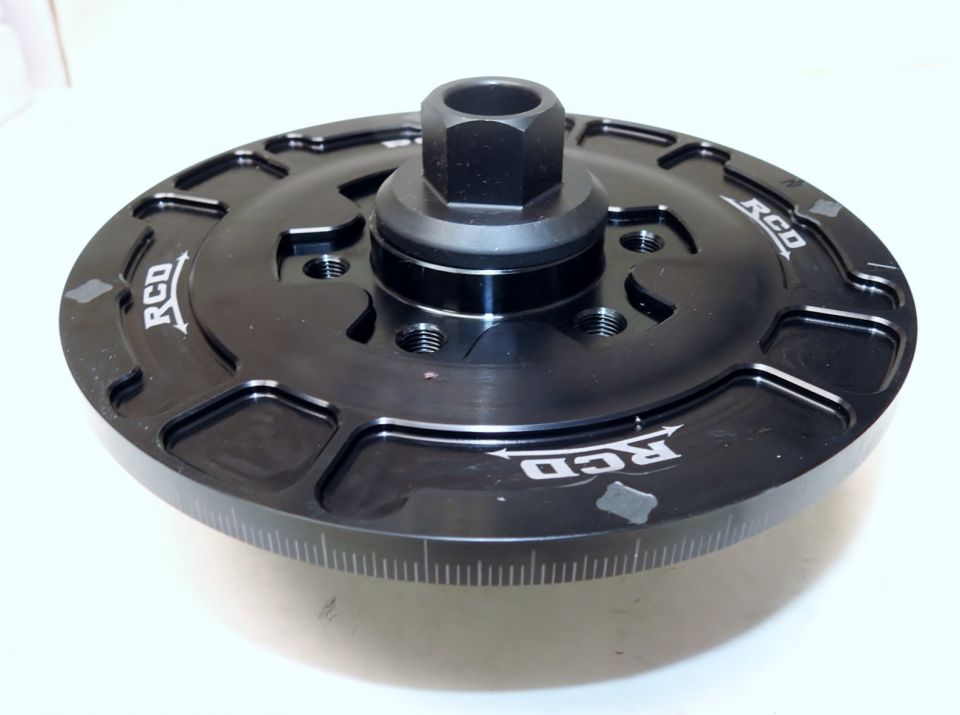

7" 4 Magnet wheel optional drop down for 11 magnet for EFI
Comes with Bolt with 200,000 psi tensile strength - http://www.alkydigger.net/proddetail.php?prod=RCD358850-38

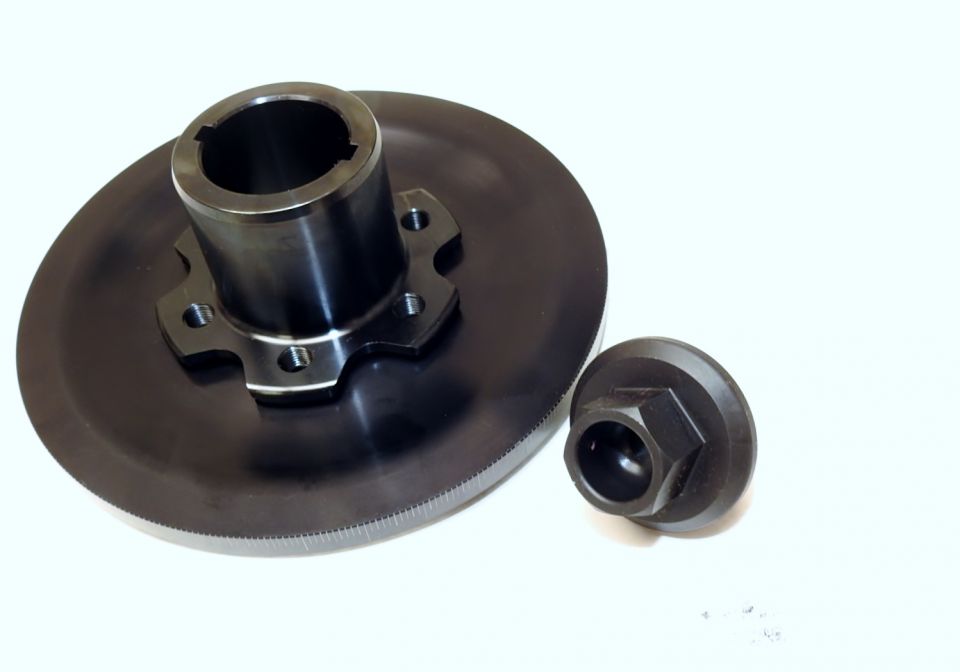

Our crank hubs are machined from heat treated chrome-moly steel billet.
Each hub has two 1/4” keyways 180° apart, six 3/8-24 threaded holes in an evenly spaced pattern and a black oxide finish.
A stepped profile is machined around the holes for weight reduction and to lock-on the degree ring.
