    Magneto - Pro Mag 20 Amp Magneto & Points Box ,  Drop In

    Thumbnail Filmstrip of Magneto - Pro Mag 20 Amp Magneto & Points Box , Drop In Images

      Purchase Magneto - Pro Mag 20 Amp Magneto & Points Box , Drop In

      SKU: MSD-81392-8106

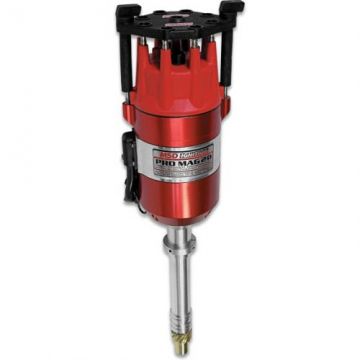

      Magneto - Pro Mag 20 Amp Magneto & Points Box , Drop in Chevy V8, Std and Tall Deck

      $4,006.00






      The 20 Amp magneto is a favorite in alcohol slurping engines such Sportsman Dragsters and Quick-8 racers.

      This comes with Magneto and Points Box - Fits All Chevy V8  Small Block and Tall Deck

      20 AMP Magneto

      8106 Points Box Transformer




      The increased output of the 20 Amp Pro-Mag was born of racers being racers; always asking for more power. This stemmed from drag racers that were using a 12 Amp system, but just didn’t require a 44 Amp system. The engineers at MSD found that with a few changes to the internals of the generator it would deliver the increased current through the same Electronic Points Box, PN 8106. There are three different generators available; a band clamp design in both CW and CCW rotation, plus a model built on a Chevy distributor base.  Comes with the PN 8106 Electronic Points Box. The band clamp versions are equipped with a large Ford style cap while the Chevy version uses a 4-inch cap and both are topped with heavy duty retainers.

      Primary Current

        20 amps
      RPM Rating through 14,000 rpm
      Secondary Current 300 milliamps
      Secondary Voltage 40,000 volts
      Spark duration 26° crankshaft rotation
      Spark Energy 240 millijoules (at the gap)
