    LS billet Joe-Blo Timing Cover -Crankshaft Support W Cam Spud & Provision for Cam Sensor
    LS003-CS LS CRANK SUPPORT JOE-BLO TIMING COVER W Provision for Cam Sensor

    Thumbnail Filmstrip of LS003-CS LS CRANK SUPPORT JOE-BLO TIMING COVER W Provision for Cam Sensor Images

      Purchase LS003-CS LS CRANK SUPPORT JOE-BLO TIMING COVER W Provision for Cam Sensor

      SKU: JB-LS003-CS
      LS0003-CS LS CRANK SUPPORT JOE-BLO TIMING COVER W Provision for Cam Sensor

      $1,345.00








      JB-LS-003-CS     BILLET   TIMING COVER LS Chevy Engine  CRANK SUPPORT with HUB &

        (WITH CAM SENSOR)

      * provision and Drive Spud for Driving the fuel pump Optional *

      Allows Blown and ProCharger engines to support the front main bearing for  wear prevention

      • LS billet timing cover with built in crank support.
      • The crankshaft snout can break from excessive loads caused by blower drives. The extra support that the bearing gives will help stop the crank flexing and possibly breaking.
      • Made from solid billet aluminium and fully CNC machined.
      • Comes complete with bearing, seal and 4140 crank hub with dual key way.
      • Serpentine or vee pulley for alternator fits onto hub. (no balancer needed for rootes style blowers)
      • Serpentine pulley (add on)
      • Machined to fit over double row timing chain and High volume oil pump.
      • Available in raw
      • Comes fully assembled with bearing, circlip, seal and 4140 duel key way hub ready to fit.

      Be sure to double check the clearance between hub and bearing during installation.

      Related Products


      LS billet Timing Cover - With a 7330 MSD 7AL-3 , distributor, Coil
      LS billet Timing Cover - With a 7330 MSD 7AL-3 , distributor, Coil $4,000.00
      Chevy LS Joe-Blo billet Timing Cover w 17.25 gpm Waterman Lil Bertha Fuel pump support 1800-2400 hp
      Chevy LS Joe-Blo Billet Timing Cover with 17.25 gpm ( option to change ) Waterman Lil Bertha Fuel pump supports from 1500-2300 hp $2,995.00
      Chevy LS BILLET Timing Cover w Sensor HOLE -& 14 TO 29 GPM Waterman Lil Bertha Fuel Pump -
      Chevy LS BILLET Timing Cover w Sensor HOLE -& 14 TO 29 GPM Waterman Lil Bertha Fuel Pump - $3,150.00
      LS Billet Timing Cover - Billet Timing Cover Drive Kit for LS Chevy - Drives a pump and distributor
      joe Blo LS Billet Timing Cover - Billet Timing Cover Drive Kit for LS Chevy - Drives a pump and distributor $1,990.00
      LS Billet Timing Cover Drive Kit for LS Chevy Engines - Drives a Fuel Pump & Magneto
      LS Billet Timing Cover Drive Kit for LS Chevy Engines - Drives a Fuel Pump & Magneto $1,930.00
      LS Billet TIMING COVER-RCD-MAG-DIST DRIVE -W CLAMPS CAM SPUD USES CHEVY STD DISTRIBUTOR -
      LS Billet TIMING COVER-RCD-MAG-DIST DRIVE -W CLAMPS CAM SPUD USES CHEVY STD DISTRIBUTOR - $2,450.00
      JOE-BLO LS BILLET TIMING COVER W 11.7 GPM AEROMOTIVE BLACK FUEL PUMP OPTIONAL EXTENSION
      11117-JB Joe-Blo LS BILLET Timing Cover with 12 gpm Aeromotive or Waterman Fuel Pump Super Sprint Waterman Fuel Pump $2,140.00
      LS Billet Timing Cover - Accepts the RCD Drive on
      LS Billet Timing Cover - Accepts the RCD Drive only Billet Timing Cover for LS Chevy Engines - Drives a Fuel Pump and Magneto Behind the Belt $580.00
      JB-LS003 LS billet Timing Cover - NO Provision for Cam Sensor - for LS Chevy Engines - Cam Drive
      LS003 LS billet Timing Cover - NO Provision for Cam Sensor - for LS Chevy Engines - Cam Drive $540.00
      Joe-Blo LS billet Timing Cover & Spud for .388" Raised Cams - All LS Engines
      Joe-Blo LS billet Timing Cover & Spud for .388" Raised Cams - with Provision for Cam Sensor - for LS Chevy - Drives a Fuel Pump and/ or Mag or dist $655.00

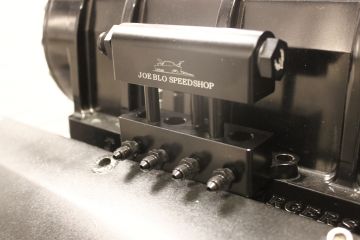

      EFI - Remote Injector Mixing Block Fuel Distrib
      EFI - Remote Injector Mixing Block Fuel Distributor for 4 injectors Less injectors $650.00

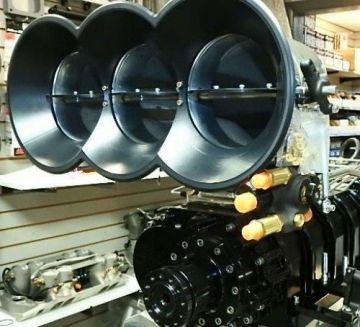

      JoeBlo Air ENHANCER BLACK - Big and Ugly Rapta-Catcha Air Enhancer Beautiful
      JoeBlo Air ENHANCER BLACK - Big and Ugly Rapta-Catcha Air Enhancer Beautiful $750.00
      RAPTA Air Enhancer - Aluminum Big and Ugly Rapta-Catcha Air Enhancer JoeBlo
      Air Enhancer - Big and Ugly Rapta-Catcha Air Enhancer JoeBlo Aluminum $675.00
      EFI - Remote Injector Block Fuel Distribution for Manifold Injectors
      EFI - Remote Injector Block Fuel Distribution for Manifold Injectors $695.00
      JoeBlo Speed Shop EFI Billet Injector Hat Partial - Low Profile w Black Option
      JoeBlo Speed Shop EFI Billet Injector Hat Partial - Low Profile w Black Option $4,250.00
      JB-006 JoeBlo Speed Shop Billet Low Profile Mechanical Injector Hat with Nozzle Holes Arms-Stops
      JB-006 JoeBlo Speed Shop Billet Low Profile Mechanical Injector Hat with Nozzle Holes Arms-Stops $3,550.00
      JoeBlo Speed Billet EFI Injector Hat- Solid Billet EFI with Holley HP COMPLETE
      JoeBlo Speed Billet EFI Injector Hat- Solid Billet EFI with Holley HP COMPLETE $8,995.00
      Joe-Blo ( JoeBlo ) Billet Quattro Injector Hat- 4 Butterfly 51 sq inches NON RETURNABLE
      Joe-Blo ( JoeBlo ) Billet Quattro Injector Hat- 4 Butterfly 51 sq inches inlet AREA $4,950.00

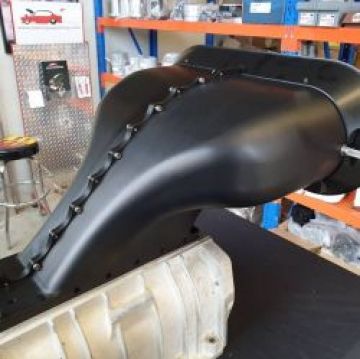

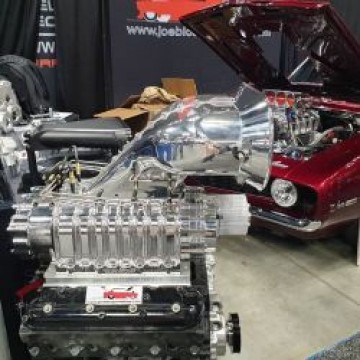

      Billet RidgeBack Blower Injector- 86 sq in of SURFACE
