    Belt Drive -MANDREL  Un-Blown 4 Bolt Big Block   Ford Belt Drive Mandrel  1" dia 1/8" keyway

    Thumbnail Filmstrip of Belt Drive -MANDREL Un-Blown 4 Bolt Big Block Ford Belt Drive Mandrel 1" dia 1/8" keyway Images

      Purchase Belt Drive -MANDREL Un-Blown 4 Bolt Big Block Ford Belt Drive Mandrel 1" dia 1/8" keyway

      SKU: IW-949
      Belt Drive -MANDREL Un-Blown 4 Bolt Big Block Ford Belt Drive Mandrel 1" dia 1/8" keyway

      $225.00





      Big Block Ford Crank Mandrel Kit #949

      1″ Standard Dia. Crank Mandrel kit with mounting hardware for Big Block Ford (BBF). Accepts most popular pulleys with 1″ bore and 1/8″ Keyway. Pulley Not Included, available separately.

      • Application: Big Block Ford
      • Length: 4.5″ OAL
      • Keyway: 1/8″ Industry Standard Keyway
      • Shaft: 1″ diameter Industry Standard OD
      • Mounting Flange: Standard BBF

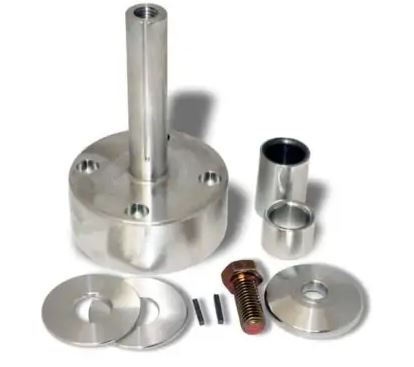

      Mandrel Kits Include

      • Mandrel
      • End Cap
      • End Cap Bolt
      • 2 Pulley Washers
      • 2″ Long Mandrel Spacer
      • 1″ Long Mandrel Spacer
      • (2) 1/8″ x 1″ Keys
      • Mandrel Mounting Flange Bolts

      Works Great for Turbo SB Fords using mechanical pumps  , 1" Dia shaft w 1/8" keyway

       Aeromotive -Hilborn-Enderle-Waterman-DSR-Ron's -Kinsler- Crower - most all pumps with 3/8 hex drive
