Thumbnail Filmstrip of IW-845 LSX Balancer Chevy 6.75" OD Damper for LSX Racing Applications #845 Images

6.75″ OD Damper for LSX Racing Applications #845 Corvette Length - 6 Bolt dual pattern ProCharger ( Not Blower )

SFI 18.1 6.75″ Diameter Damper for LS Race Applications. This damper is fully engraved for setting timing and is also available with integrated flying magnet crank trigger system. The damper comes standard with Corvette length hub. Damper has a 6 bolt GM pulley pattern (6 on 3.2″) and a BBC register that will accept most aftermarket BBC crank mandrels and pulleys. An Innovators West crank mandrel is available separately (see Part #947) or Aeromotive mandrel listed at Alkydigger's

Diameter: 6.75″
Weight: 7.7 lbs
Exceeds SFI 18.1 standards and is marked on front with SFI Sticker, and on the rear with SFI number stamped into unit.

More Product D

Options

Flying Magnet Crank Trigger Option

Get rid of your separate Crank Trigger Wheel by integrating it into the Damper itself! - Saves on average about 9 Ounces over the MSD Crank Trigger Wheel.

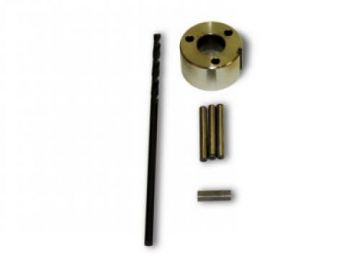

LS Corvette Crank Pin Kit #966 Crankshaft Pin Kit for Corvette LS1/2/3/6 Engines. Will not work with LS7 engine. Designed for use with Innovators West dampers. For Stock Crankshafts Only.
Crank Trigger Sensor Option

3/4-16 UNF Flying Magnet Crank Trigger Sensor - Direct Replacement for MSD #8276. Designed to work with Integrated IW Flying Magnet Balancer Option and Brackets.
Crank Trigger Bracket Option

Bolt on a matching billet aluminum sensor bracket and mounting hardware, with either passenger (std) or drivers side mounting options.
Dual Keyway Option

The double keyway option requires that the factory or aftermarket crankshaft be removed from the engine and a second keyway cut into the snout of the crankshaft. DO NOT run a double keyed damper on a crankshaft without the double keys. Failure to the damper hub can happen without the supporting key in the broached keyway slot. The dual keyway option is for Supercharged or Extreme Duty Applications (typically over 750 rwhp). Without the double key modification your crankshaft in these high horsepower applications can lead to the failure of the damper hub and/or the single keyway which results in damage to the damper and the crankshaft snout.

Details

Diameter: 7.00"
Weight: 8.2lbs
6 Bolt, 2.760" Pulley Pattern.
Male 2 Pulley Register for BDS and other Roots Style Blower Pulleys.
Exceeds SFI 18.1 standards and is marked on front with SFI Sticker, and on the rear with SFI number stamped into unit.
LS Blower , LS 6 Bolt , LS Blower Balancer .

GM LSX Damper Installation Instructions [PDF Format].
Damper Hub Honing Instructions [PDF Format].
