Thumbnail Filmstrip of Joe Hunt Racing Vertex Magneto Rare Earth H2 Ford- 351W 9.5 Deck Images

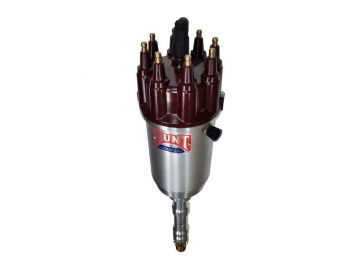

HUNT VERTEX NEW Magneto- FORD 351W 9.5" Deck engines
Rare Earth magnets for high compression or methanol and Blown on Alcohol -

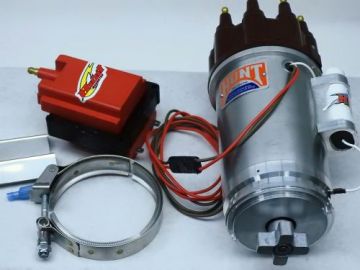

*only surpassed by our H3 Vertex External transformer
Has 10 degrees of Centrifigual advance built in for ease of starting- Gives 20 degrees at the crankshaft or we can lock it out if racing only
No battery needed- no control box- simply on and off switch
IGNITION AT ITS BEST, DEPENDABLE, TROUBLE FREE OPERATION, QUICKER STARTING, MORE POWER. A COMPLETE SYSTEM
The OAC (internal coil) competition Joe Hunt Magneto is compact and light weight, completely self-contained, entirely independent of the battery and generates its own high tension alternating current. No complicated installation procedure, quick and easy replacement with no engine modification necessary. Installed on the engine in the same manner as a battery ignition distributor.
Joe Hunt Magneto ignition systems excel in use with competition; marine power plants; stationary and mobile industrial engines; farm equipment.
Joe Hunt mags from Alkydigger can be used with a diversity of fuels and still retain their superior characteristics.
Constant Voltage throughout the entire R.P.M range- approx 60k AC Volts , compares to 120k DC Volts
