    Motorplate Belt Drive kit CHEVY  with 2.280" Register 3 Bolt  with 1" Mandrel

    Thumbnail Filmstrip of Motorplate Belt Drive kit CHEVY with 2.280" Register 3 Bolt with 1" Mandrel Images

      Purchase Motorplate Belt Drive kit CHEVY with 2.280" Register 3 Bolt with 1" Mandrel

      SKU: AD-947-3bolt
      Belt Drive-Fuel Pump Drive for Pro Chargers and Turbos when using a 3 bolt Chevy pattern BB Balancer with 2.28" Register All Engines

      $497.00





      3 Bolt     Pump Drive - for direct  fit to BB or SB Chevy or  Most LS  with a 2.280"  Register on balancer  using a Motorplate to mount the pump drive

      Fits Ppoular    pumps, All Hilborn , Enderle,   Kinsler pumps, Waterman pumps,  Aeromotive,  Rage,   most others with 3 or 4 bolt pattern

      -- Even Ron's

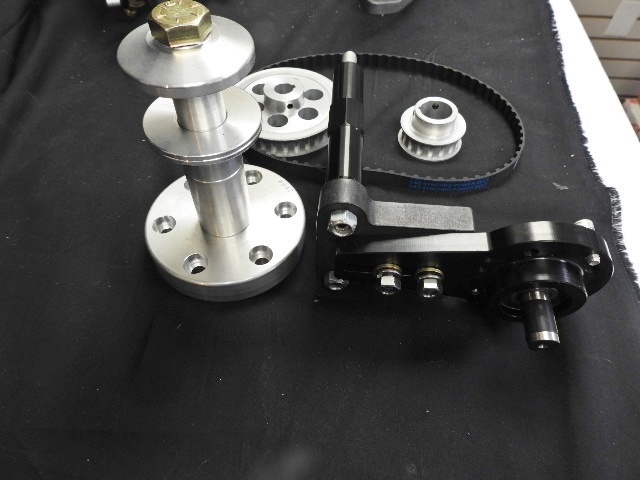

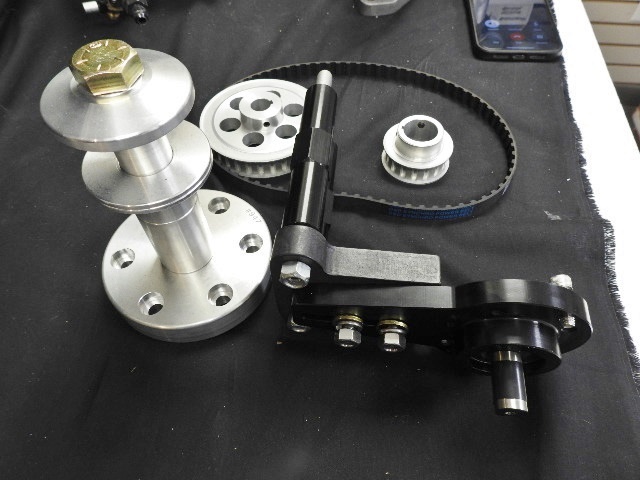

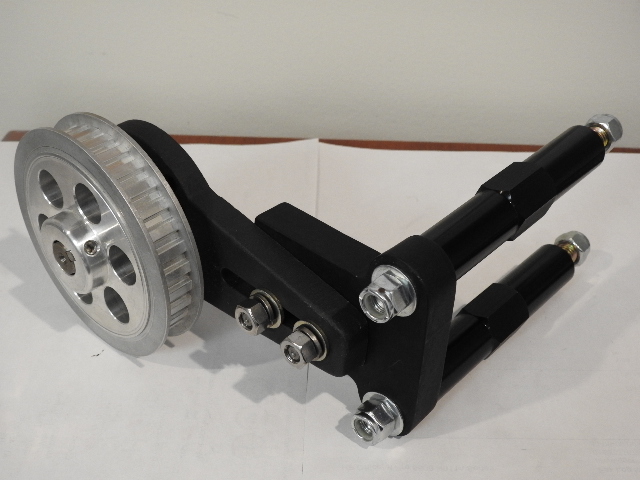

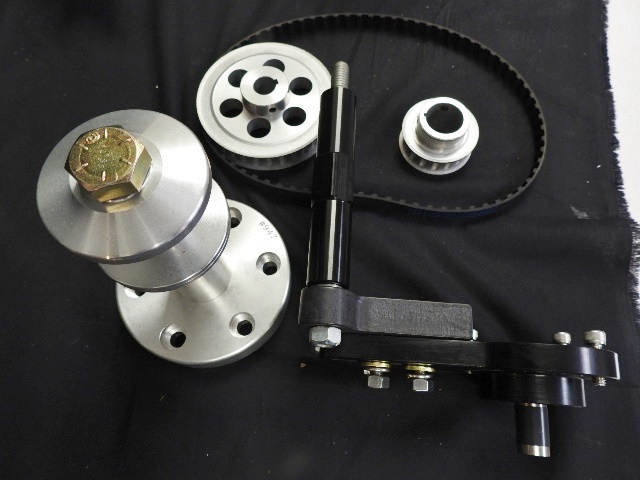

      Includes:

      • pump mount  5016 billet
      • 1" Mandrel with BB Chevy balancer pattern  Register on rear 2.280"   BB Chevy -LS  -  others  ( some Ford Balancers have a 3 bolt Chev pattern)
      • 5021 Chevy universal engine bracket   will fit many different engines
      • 28" Gilmer style 1/2" belt
      • 2- Motorplate stands , 4-1/2" long
      • 32 tooth and a 16 tooth  3/8" Gilmer  L pitch pulleys

      Are you running a water pump? Or you don't have room on the front of the engine? Or maybe there's not a timing cover drive made?

      This is the solution! This has the correct hub to bolt into your 3 bolt pulley or Balancer

      This can be put into the motorplate whereever you like .
