    22516 Waterman Racing Super Sprint,.800 gear height Mini Bertha 7.8 GPM Dual gear Billet

    Thumbnail Filmstrip of 22516 Waterman Racing Super Sprint,.800 gear height Mini Bertha 7.8 GPM Dual gear Billet Images

      Purchase 22516 Waterman Racing Super Sprint,.800 gear height Mini Bertha 7.8 GPM Dual gear Billet

      SKU: WAT-22516S-800
      22516 Waterman Racing Super Sprint,.800 gear height Mini Bertha 7.8 GPM Fuel Pump Dual gear Billet

      $836.00


      Place your social sharing code here.

      Waterman 22516   Super Sprint  Mini Bertha    7.8  gpm  Flow - Cam Rotation    Any fuel ok  .800" Gear Height

       Replaces  80A-1  Enderle

      Dual Precision Gear  micro lapped gears.

      Dual Precision Gear  micro lapped gears. Famous Waterman Quality

      Available in :  8 gpm to 13 gpm flow

      This Spur Gear  Waterman  pump uses the swivel three bolt mounting flange -  Or optional Quick Release Flange

      Fuel pump uses the industry standard .375" hex drive shaft  ( 3/8") which is made from heat treated steel.

       Gallons per minute  7.8   called an 8 gpm

       Swivel clamp  3 or 4 bolt

      3. Inlet size   -10    -12, , AN   or   1.250"  slip on

      . Outlet size -8 or -10    -12

      22516  Super Sprint



      Below - all the Cam Drive  Super Sprints

      22516- 250800S

      Pump, Super Sprint, Std Rotation, , 3/8 Hex,  .800  (7.8GPM)

      22518-250900S

      Pump, Super Sprint, Std Rotation, 3/8 Hex,  .900   (8.8 GPM)

      22520-250100S

      Pump, Super Sprint, Std Rotation, , 3/8 Hex,  1.00   (9.75 GPM)

      22522- 250110S

      Pump, Super Sprint, Std Rotation, , 3/8 Hex,  1.10    (10.7 GPM)

      22524- 250120S

      Pump, Super Sprint, Std Rotation, , 3/8 Hex,  1.20    (11.6 GPM)

      22526-250130S

      Pump, Super Sprint, Std Rotation, , 3/8 Hex,  1.30    (12.45 GPM)

      22528-250140S

      Pump, Super Sprint, Std Rotation,  3/8 Hex,  1.40     (13.4 GPM)








      Related Products


      22414 Waterman 7 gpm Sprint Hex Drive Fuel Pump with Shut off and Pump saver loop -12
      22414 Waterman 7 gpm Sprint Hex Drive Fuel Pump with Shut off and Pump saver loop -12 $1,029.00
      Waterman Super Sprint,1.40" Gear (mini-Bertha ) 13.4 gpm Std Cam Rotation, flange mount , 3/8 Hex
      Fuel Pump, Waterman Super Sprint, 13.4 GM 1.400 Gears ) Std Cam Rotation, With flange Mount, 3/8 Hex $997.00
      Waterman Super Sprint, 1.40" Gear 13.4 gpm ( mini-Bertha ) Rev Rotation, 3/8 Hex
      22628 Fuel Pump, Waterman Super Sprint, 1.40" Gear 13.4 gpm ( mini-Bertha ) Rev Rotation, 3/8 Hex $997.00
      22616 Waterman Super Sprint, .800" Gear ( mini-Bertha ) 7.8 GPM Reverse Belt Rotation Drive
      22616 Waterman Super Sprint, .800" Gear ( mini-Bertha ) 7.8 GPM Reverse Belt Rotation Drive $797.00
      Waterman Fuel Pump Super Sprint, Mini Bertha 8.8 gpm .900" Gears Rev Rot. 3 bolt flange ,
      Waterman Fuel Pump, Super Sprint, Rev Rotation, No Mount, 3/8 Hex, 8.8 gpm .900 gears $836.00
      Waterman Super Sprint, ( mini-Bertha ) 8.8 GPM Std Rotation, .900" Gear Dual Gear 3/8 Hex
      22518S Waterman Fuel Pump Super Sprint, Mini Bertha 8.8 gpm .900" Gears std CAM rot.. 3 bolt flange , $797.00
      Waterman Super Sprint ( mini-Bertha ) , Cam Rotation, 1.10" Gear Flange Mount, Super Sprint,
      Waterman S ( mini-Bertha ) , Cam Rotation, 1.10" Gear Flange Mount, 22522 Super Sprin $797.00
      Waterman Super Sprint, 9.75 GPM ( mini-Bertha ) Fuel Pump - Cam Drive Dual gear 1.00" Gear Height
      Waterman Super Sprint, 9.75 GPM ( mini-Bertha ) Fuel Pump - Cam Drive Dual gear 1.00 $797.00
      Waterman Super Sprint, ( mini-Bertha ) , Rev Rotation, 10.7 gpm 1.10" Gear Flange Mount, 22622
      22622R Waterman Super Sprint, ( mini-Bertha ) , Rev Rotation, 1.10" Gear Flange Mount, 22622 $797.00
      Waterman Super Sprint, 1.300" Gear 12.45 gpm ( mini-Bertha ) Std Cam Rotation, , 3/8
      Waterman 22526 Fuel Pump, Waterman Super Sprint, 1.300" Gear ( mini-Bertha ) Cam Rotation, , 3/8 hex $925.00
      22524 Waterman Super Sprint, ( mini-Bertha ) 11.6 gpm 1.20" Gear Std (Cam) Rotation,
      22524 Waterman Fuel Pump Super Sprint, mini-Bertha 11.6 gpm 1.20" Gear Std (Cam) Rotation, $836.00
      Waterman Super Sprint, ( mini-Bertha ) 9.75 GPM Rev Rotation, 1.00" Gear Dual Gear 3/8 Hex
      Waterman Super Sprint, ( mini-Bertha ) 9.75 GPM Rev Rotation, 1.00" Gear Dual Gear 3/8 Hex $797.00
      22626 Waterman Super Sprint,1.300" gear ( mini-Bertha ) 12.45 gpm Belt Drive Reverse Rotation
      22626 Waterman Super Sprint, ( mini-Bertha ) Belt Drive Reverse Rotation 12.45 gpm 1.3" $925.00
      22624 Waterman Super Sprint, ( mini-Bertha ) - 11.6 gpm 1.20" Gear Belt Drive Swivel
      22624 Waterman Super Sprint 11.6 gpm 1.20" Gear Belt Drive Swivel $797.00
      250500M Waterman Sprint Manifold Fuel Pump - Reverse Rotation - 4.89 GPM .500 gear ,
      22810 Waterman Sprint Fuel Pump - Reverse Rotation - 4.89 GPM .500 gear , 3 Bolt Collar $578.00
      Waterman Sprint Fuel Pump - Reverse Rotation - 4.50 GPM @ 4000, .450 gear with Slip Collar
      Waterman 450 3 Outlet Pump, Sprint, Rev Rotation, 3/8 Hex, .450 gear height 4.5 gpm flow $649.00
      22528 Waterman Super Sprint 1.40" Gear 13.4 gpm Std Cam Rotation, flange mount , w Shut Off & Loop
      22528 Fuel Pump, Waterman Super Sprint, 13.4 GM 1.400 Gears ) Std Cam Rotation, With flange Mount, 3/8 Hex $1,550.00
      Waterman Super Sprint, 1.30" Gear 12.45 gpm ( mini-Bertha ) Std Cam Rotation, w Shut off & Loop
      Fuel Pump, Waterman Super Sprint, 1.300" Gear ( mini-Bertha ) Std Cam Rotation, , 3/8 hex $1,550.00
      29110 Waterman Sprint & Super Sprint Pump Rear Seal and O-Ring Kit Service Kit
      29110 Waterman Sprint & Ultra Lite Pump Rear Seal and O-Ring Kit $20.00
      Waterman Super Sprint Pump ( Mini Bertha ) Rear
      29108 -Waterman Super Sprint Pump ( Mini Bertha ) Rear Seal and O-Ring Kit $34.00
      29553 Waterman Adapter, Outlet, Super Sprint, AN-08 Port
      29553 Waterman Adapter, Outlet, Super Sprint, AN-08 Port $67.00
      29555 Adapter, Outlet, Super Sprint, AN-10 Port
      29555 Waterman Adapter, Outlet, Super Sprint, AN-10 Port $67.00
      29557 Waterman Super Sprint -12 - Mini Bertha Adapter, Outlet, , AN-12 Port
      Waterman Racing 29557 inlet outlet $67.00
      29551 WATERMAN Return Port Manifold Block, Mini Bertha & Super Sprint, 2x AN-0
      29551 Return Port Manifold Block, Super Sprint, 2x AN-06 $89.00

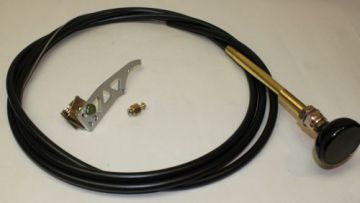

      Shut Off Cable Kit- Waterman Sprint Super Sprint Fuel Pumps
      Waterman Fuel Shut Off Cable Kit- Waterman Fuel Pumps w Bracket & Pivot $115.00
      Waterman Fuel Shut Off Sprint Super Sprint Cable Kit- Fuel Pumps w Shutoff Bracket & Cable
      Waterman Racing Sprint and super sprint Shut off kit $125.00
      Loop Kit- Waterman Super sprint Pump saver Single return for Mini Bertha All
      Waterman Super Sprint Loop Kit- Pump saver Single return for Super Sprint & Mini Bertha Pumps $130.00

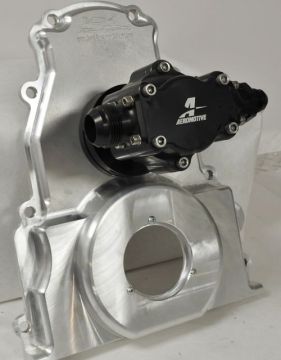

      LS billet Timing Cover with 12 gpm Aeromotive or Waterman Fuel Pump Super Sprint
