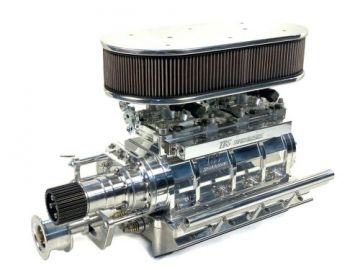

    Chevy 250 LS -  8mm  LS3- L92  REC  port  Blower Package- low profile- Billet 250  8mm x2" wide belt

    Thumbnail Filmstrip of Chevy 250 LS - 8mm LS3- L92 REC port Blower Package- low profile- Billet 250 8mm x2" wide belt Images

      Purchase Chevy 250 LS - 8mm LS3- L92 REC port Blower Package- low profile- Billet 250 8mm x2" wide belt

      SKU: TBS-3158
      TBS-3158 Chevy 250 LS - LS3 L92 REC port Blower Package - TBS 8mm drive 250 Complete Manifold and Drive

      $5,400.00

      Black Anodize Package $1050:



      Place your social sharing code here.


      LS3 and L92   Chevy- 250 Blower Setup  -  Complete Kit  with

      uses 8mm x 2"  wide drive belt cleated

      Fits under hood  usually with no modifications - overall height of manifold, blower and carb adapter is 10.56"

      A Carb or Bugcatcher will add about 5"  height

      the top on this blower is same as a 8-71  or 6-71  pattern-  whatever fits them, fits this as well  .

      Solid Billet , with Billet 2 lobe rotors.    Mirror like polishing.

      makes PLENTY of boost for any engine up to 500 cu in -  for Street or Marine use

      Great Street sleeper blower to hide under the hood.

      great power adder to develop from 100-300 more HP immediatly

      Also Used in High Compression LS   Chevy Race cars to add 3-4 lbs of boost to equalize Atmospheric

      conditions when the air gets dirty, and/or  corrected elevation  and density altitude caused a negative impact on  your ET .

      A 71 style Supercharger sticking out of the hood is always a nice addition, but it may not be what you are looking for.  With our 250 BilletCharger blower series we have solved that problem. Still producing the most boost in the industry these dangerously powerful blowers come in a beautifully small package.  Perfect for tight clearances and low profile under-the-hood applications.

      BILLET ROTORS ARE HARD ANODIZED AND COME WITH  TEFLON STRIPPING

      BILLET CASES ARE HARD ANODIZED INTERNALLY

      Specs:

      • Billet Case
        • CNC machined 6061-T6 Aluminum
        • Increased Strength over cast
        • Hard Anodized Interior
        • Mirror-Like Polish
        • Low Profile Design (6.56 tall including Billet Carb Adaptor)
        • Single or Dual Carb (4150 or 4500 *Please Specify when Ordering
      • 2 Lobe Rotors
        • Billet Extrusion
        • Teflon OD Stripping
        • Full length rotor shaft for increased strength
        • Maximum boost at low RPM
      • Billet Front Cover -Oil Level Sight Glass-Oil Drain Plug-Polished Pressure Relief Valve
      • Billet Bearing Plates
        • Increased Strength over cast
        • Hard Anodized
      • Included:
        • 250 Billet Supercharger with Snout
        • Intake Manifold direct port EFI
        • Accessory Pulley 2V belt or Serpentine
        • Supercharger Pulleys (*Please specify engine size and desired boost when ordering)
        • Belt 8mm x 2" Cleated
        • Idler Assembly
        • All Necessary Gaskets and Hardware
        • you will need a Aftermarket Balancer with a 6 bolt Blower Bolt pattern.
        • We stock the  ATI , Innovators West  Balancer  or a Blower hub.
        • Dual EFI Throttle Body Injection system  from Holley  works nicely
        •   NEEDS our IW  Corvette spacing balancer  for belts to align - or ATI Corvette  spacing balancer
