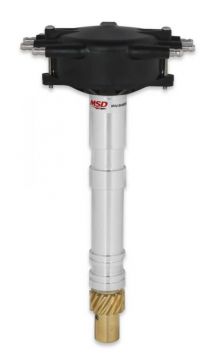

Thumbnail Filmstrip of 2340 MSD Distributor - EFI Sync Signal Chevy V8 Distributor Images
Racing low-profile distributor must be used with an MSD 6, 7 or 8-series ignition and a crank trigger. Great for EFI Setups See Also 23401MSD
If your EFI system has limited space in the back of the engine due to the intake combination or firewall, this low-profile distributor is for you! The sync pickup of this distributor is fixed at 45° BTDC on the number one cylinder. This magnetic pickup signal will reliably alert your ECU as to when the number one cylinder is preparing to fire. The distributor uses a wide, Ford-style cap to improve voltage distribution and to reduce the chances of ionization and spark scatter. A 0.500” polished steel shaft is responsible for spinning the rotor and is guided by a sealed ball bearing guide and bushing. The distributor is ready to drop in your race engine from the bronze gear to the brass terminals of the cap.
- Must be used with an MSD 6, 7 or 8-Series Ignition and Crank Trigger.
