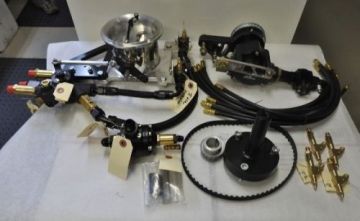

Thumbnail Filmstrip of Blow through & Turbo, 6 cyl. Pro Charger Blow through System w pump , drive ,nozzles Images
- Pulling Tractors- Drag Cars-
- Drag Cars use multi Butterfly
- Pullers use single 4"
- Full Pro Charger or Turbo kit- -6 cyl- .

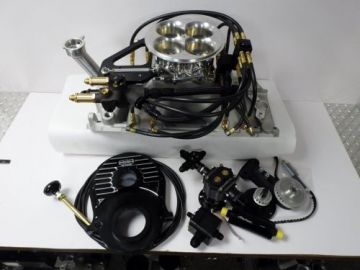

- Through Billet Throttle Body. or multi butterfly progressive throttle body
- 1000 to 1500 HP approx mechanical system .
- Blow Through Throttle body injector for Turbo or Pro Charger Engines -

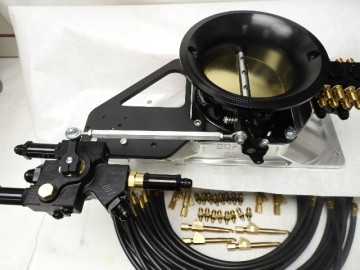

- Throttle Body:
-
4" Billet Single Throat Fuel Injector flowed for Pro Charger or turbo application.
-
- Enderle Barrel Valve
- *Stainless 100 Micron full flow fuel filter
- Pills for by pass
- (6) Twin Nozzles for Idle / Power
- Port nozzle check Valve
- 2 EN4027 Junction Blocks
- 4 way shut off valve
- Belt Drive Kit * may require mods
-
An Enderle/ Waterman or Aeromotive 7.8 to 13.4 gpm Fuel pump * optional Lil Bertha or Aeromotive Spur gear pump
- 12 Nozzle hoses - Normal length will be for a single plane manifold- We will provide custom lengths
- Pump larger than 13.5 gpm will be optional- over 40 lbs boost will take a larger pump
- Intake manifold and Turbo hat not included
- https://www.alkydigger.net/TechInfo/set-up-instructions-for-blow-through-mechanical-systems/
